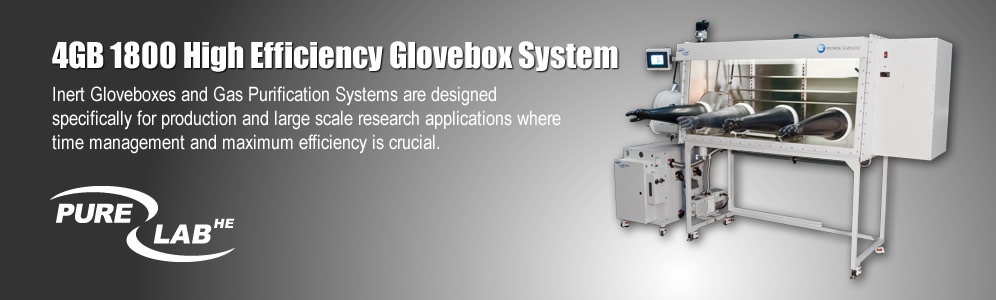

PureLab HE 4GB 1800 Glovebox System
The PureLab HE 4GB 1800 Glovebox design is based on a modular platform allowing
customers to expand existing Gloveboxes to meet increasing working space
requirements. Expansion features include additional antechambers for thru flow
work processes, cold storage freezers, process vacuum ovens and furnaces and
full line of accessories.
The PureLab HE Gas Purifiers provide a < 1ppm O2
and H2O Inert Atmosphere required for a multitude of air sensitive
applications.
|
Internal working dimensions: 1800mm W x 780mm D x 900mm H
|
PURELAB HE GLOVEBOX FEATURES
All PureLab brand Glovebox Systems are manufactured using the strictest of
Quality Assurance measures and with only highest quality components including
Swagelok compression fittings and valves, Edwards Vacuum Components and Allen
Bradley PLC Controls.
| Standard Features |
304 Type SS Construction
Modular design
All Stainless Steel Gas Flow Piping & Fittings
Electrical Feed Through with Power Strip
Gas and Vacuum Feed Through
Foot Pedal for Manual Pressure Control
Front Mounted Light
MR-10 LEXAN Chemical Resistant Window
Teflon Glove Ports
Powder Coated Finish
Color Touch Screen HMI
|
Gas Purifier < 1ppm O2 and H2O
Large Vacuum Chamber
Rotary Vane Vacuum Pump
Variable Speed 0-60 CFM Circulation System
Automatic Regeneration
Automatic Pressure Control
Automatic Column Valves
Adjustable Storage Shelves
Locking Leveling Casters
Power Strip
|
PURELAB HE GLOVEBOX ACCESSORIES
| Available Accessories |
Oxygen Analyzers
Moisture Analyzers
Cold Storage -35C Freezers
Automatic Purge Valve
Automatic Antechamber Control
Solvent Removal Systems
Cold Wells
Dual Purifying Column
|
Video Microscopes
Spin Coaters
Thin Film Evaporators & Sputtering Systems
Solvent Purification Systems
Dry Vacuum pumps
Vacuum Ovens & Furnaces
Glovebox Cooling
|
|
